influx_studio: urban oasis

'urban oasis' by influx_studio in manama, bahrain
all images courtesy influx_studio


paris-based practice influx_studio has sent us images of 'urban oasis', a design proposal for a large-scale
public square in manama, bahrain. sidled between the city's historical urban fabric and the new modern
waterfront, the project focuses on providing a metropolitan platform that not only links the two areas
together but also encourages pedestrians to meet and stay under a sheltering canopy structure.



from above


recognizing the country's rising place within both the middle east and the global economy, the design seeks
to define a strong landmark image for the strategic gathering place of manama. the flat surface of the canopy
structure is supported by a collection of tree-like pillars that pull away from the roof at various points.
sleek yet organic, the translucent shelter provides shade while allowing indirect daylight from the north
penetrate on to the deck level. street-level traffic and congestion is relieved by an underground by-pass
and parking which enhances pedestrian circulation and east-west connectivity.



street view


remaining open to the site on all four sides, the design utilizes passive strategies for cooling and shading.
the expansive canopy structure features an integrated photovoltaic system that simultaneously block out
direct sunlight to minimize overheating.



approach


under the canopy shelter, the square is defined and expressed in layers: a softly undulating terrace
wraps around seven circular sunken gardens which showcase the world's vegetal biomes. a series of shaded
calm zones are offered long the garden patios, allowing for more intimate functions and gatherings.
the proposal also introduces an 'all-day program core structure', a new integrated system that identifies
strategic programmatic overlaps between the square's functions to amplify their potentials.



interior view from promenade



under the canopy



scheme

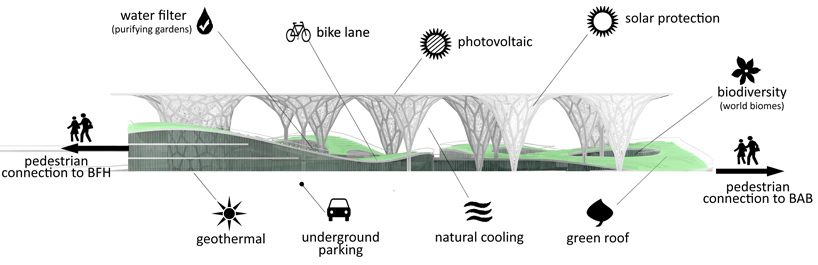

environmental diagram

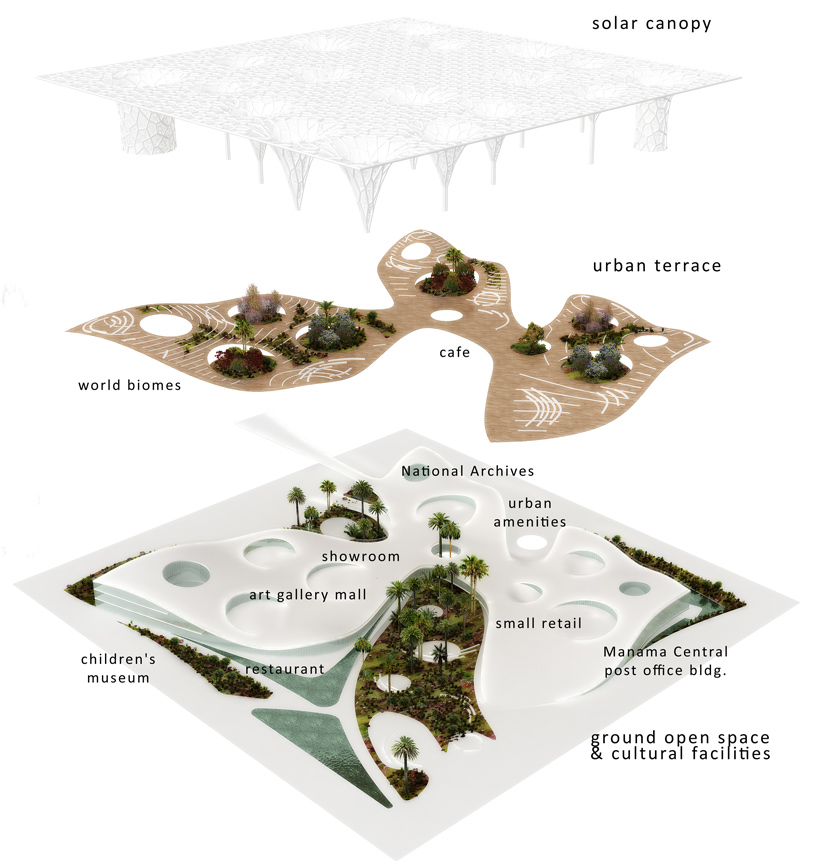

exploded axonometric

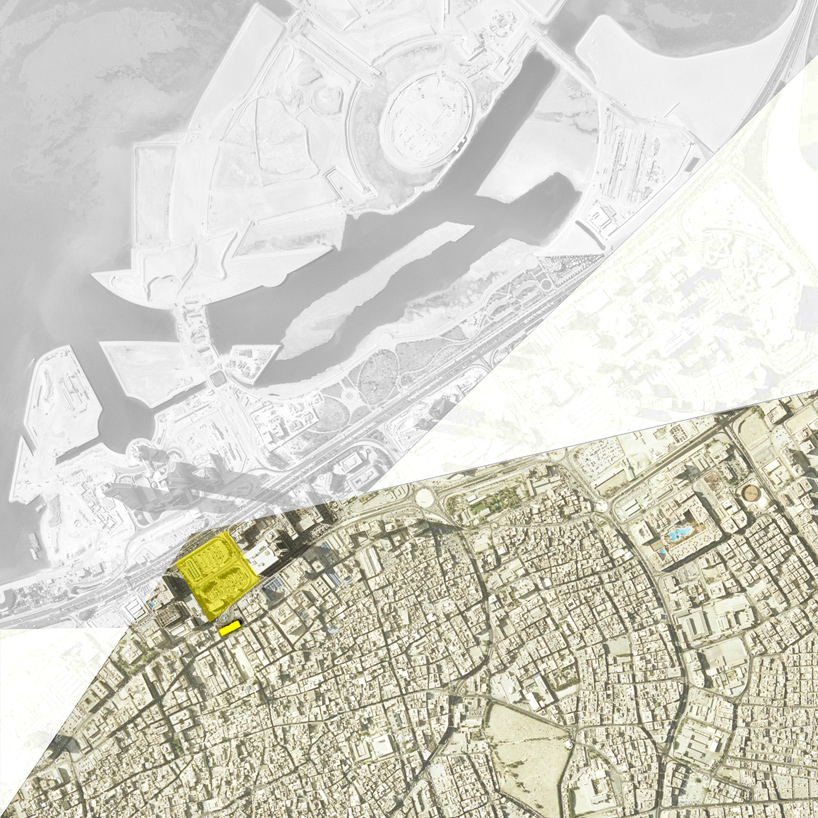

site

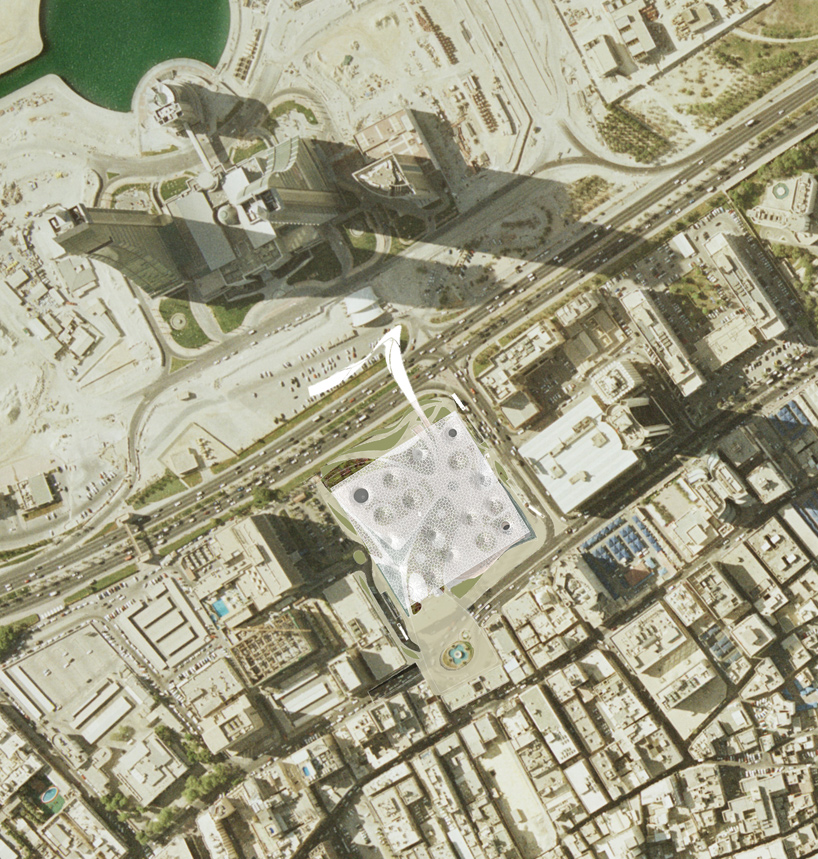

aerial view

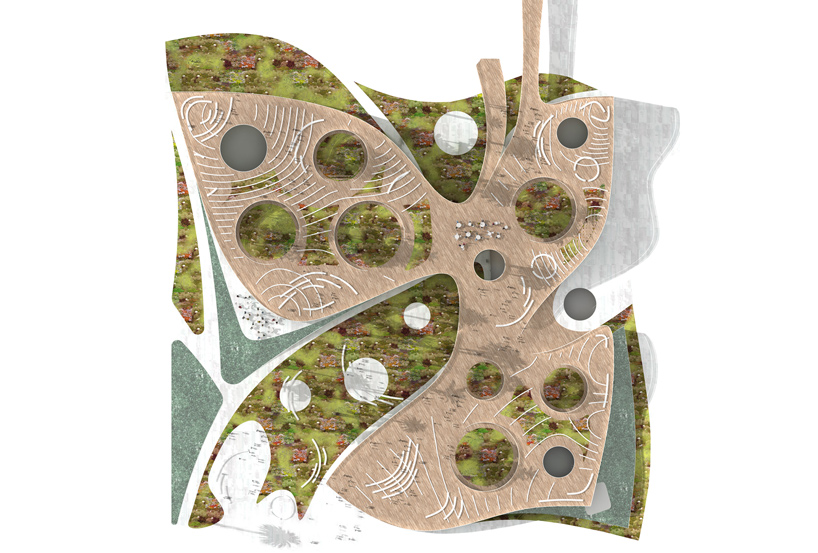

floor plan / deck level

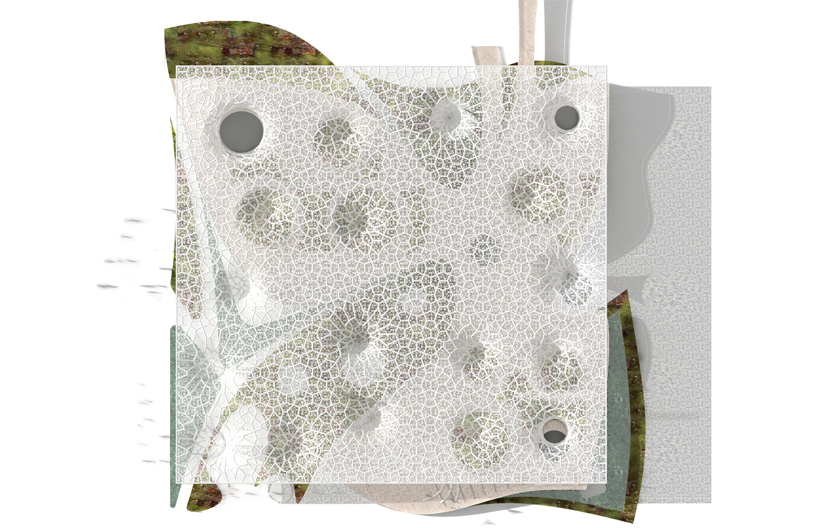

canopy level



section through site
